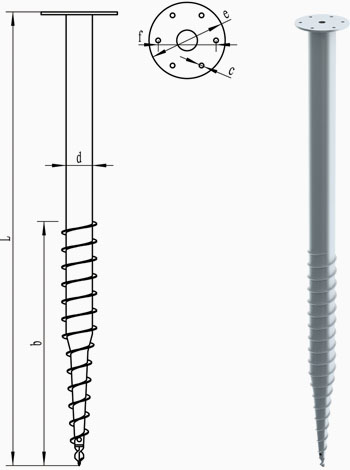

| 型号 | 总长L (mm) |
管直径d (mm) |
旋片高度b (mm) |
法兰直径e (mm) |
孔距f (mm) |
孔径c (mm) |
|---|---|---|---|---|---|---|
| LDR-YFA76x800 | 800 | 76 | 400 | 220 | 167 | 14 |
| LDR-YFA76x1000 | 1000 | 76 | 500 | 220 | 167 | 14 |
| LDR-YFA76x1300 | 1300 | 76 | 650 | 220 | 167 | 14 |
| LDR-YFA76x1600 | 1600 | 76 | 800 | 220 | 167 | 14 |
| LDR-YFA76x2100 | 2100 | 76 | 1050 | 220 | 167 | 14 |
| LDR-YFA76x2500 | 2500 | 76 | 1250 | 220 | 167 | 14 |
| LDR-YFA76x3000 | 3000 | 76 | 1500 | 220 | 167 | 14 |
| LDR-YFA89x800 | 800 | 89 | 460 | 220 | 167 | 14 |
| LDR-YFA89x1000 | 1000 | 89 | 500 | 220 | 167 | 14 |
| LDR-YFA89x1300 | 1300 | 89 | 650 | 220 | 167 | 14 |
| LDR-YFA89x1600 | 1600 | 89 | 800 | 220 | 167 | 14 |
| LDR-YFA89x2100 | 2100 | 89 | 1050 | 220 | 167 | 14 |
| LDR-YFA89x2500 | 2500 | 89 | 1250 | 220 | 167 | 14 |
| LDR-YFA89x3000 | 3000 | 89 | 1500 | 220 | 167 | 14 |
| LDR-YFA114x1000 | 1000 | 114 | 550 | 220 | 167 | 14 |
| LDR-YFA114x1300 | 1300 | 114 | 650 | 220 | 167 | 14 |
| LDR-YFA114x1600 | 1600 | 114 | 800 | 220 | 167 | 14 |
| LDR-YFA114x2100 | 2100 | 114 | 1050 | 220 | 167 | 14 |
| LDR-YFA114x2500 | 2500 | 114 | 1250 | 220 | 167 | 14 |
| LDR-YFA114x3000 | 3000 | 114 | 1500 | 220 | 167 | 14 |
| LDR-YFA140x1300 | 1300 | 140 | 700 | 240 | 180 | 17 |
| LDR-YFA140x1600 | 1600 | 140 | 800 | 240 | 180 | 17 |
| LDR-YFA140x2100 | 2100 | 140 | 1050 | 240 | 180 | 17 |
| LDR-YFA140x2500 | 2500 | 140 | 1250 | 240 | 180 | 17 |
| LDR-YFA140x3000 | 3000 | 140 | 1500 | 240 | 180 | 17 |
